Revo X
technical information
Engine Modle: JJ1P39QMB
Engine Style: Single Cylinder, Air-cooled,4-stroke
Ignition: C.D.I
Displacement: 50(ml)
Max.Power: 2.4/7500(Kw/r/min)
Max.Torque: 3.0/5000(N.m/r/min)
Impression Ration: 10.5:1
Starting Type: Electric/Kick
Max.Speed: 35（miles）
Back Suspension: 2 Rear Shocks
Brake Style: Front:Disc,Rear:Drum
DIMENSIONS: 2070*657*1066(mm)
Wheelbase: 1310(mm)
Cross Weight: 115
Dry Weight: 193 LB
Weight Capacity: 300 LB
Front Tire: 120/70-12
Rear Tire: 120/70-12

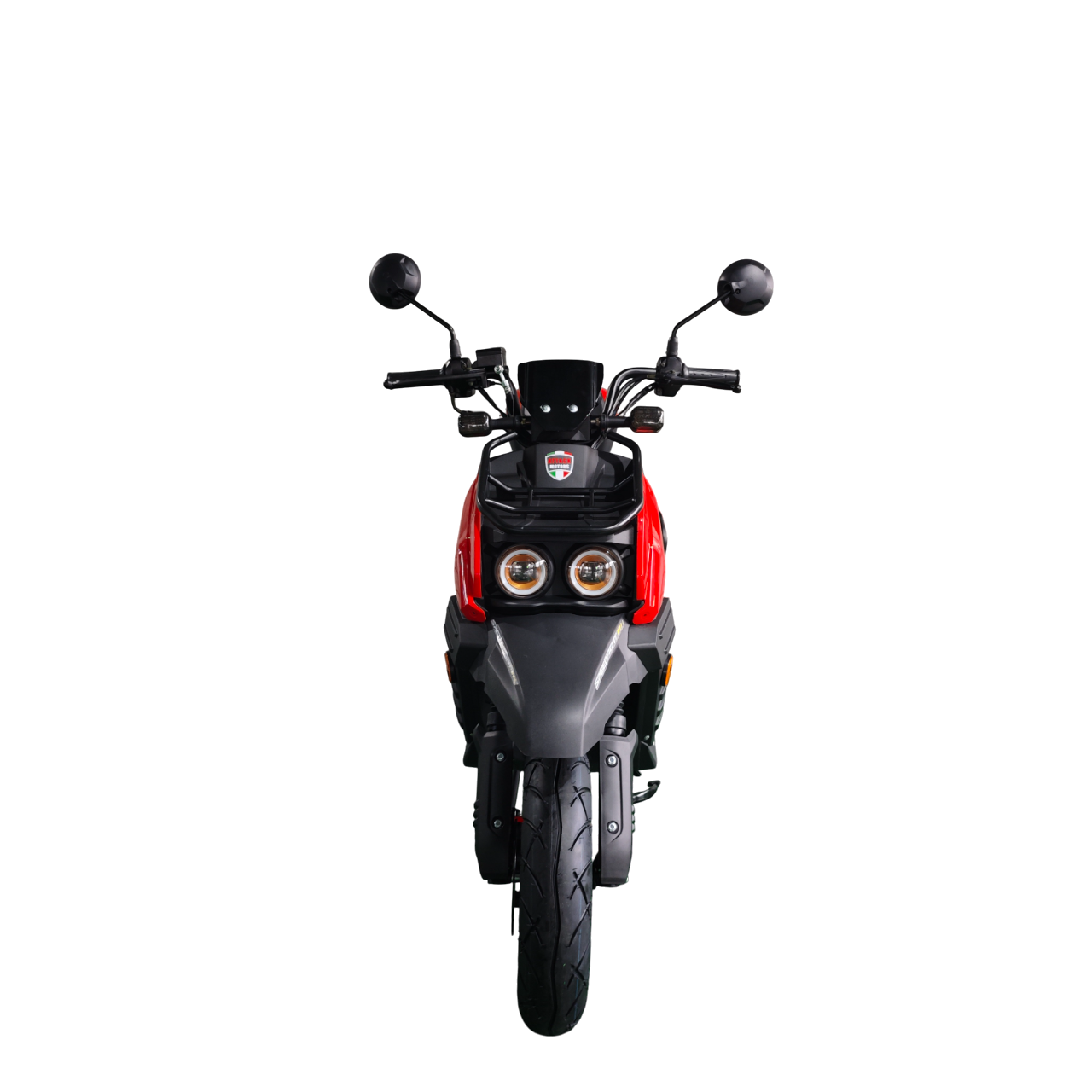

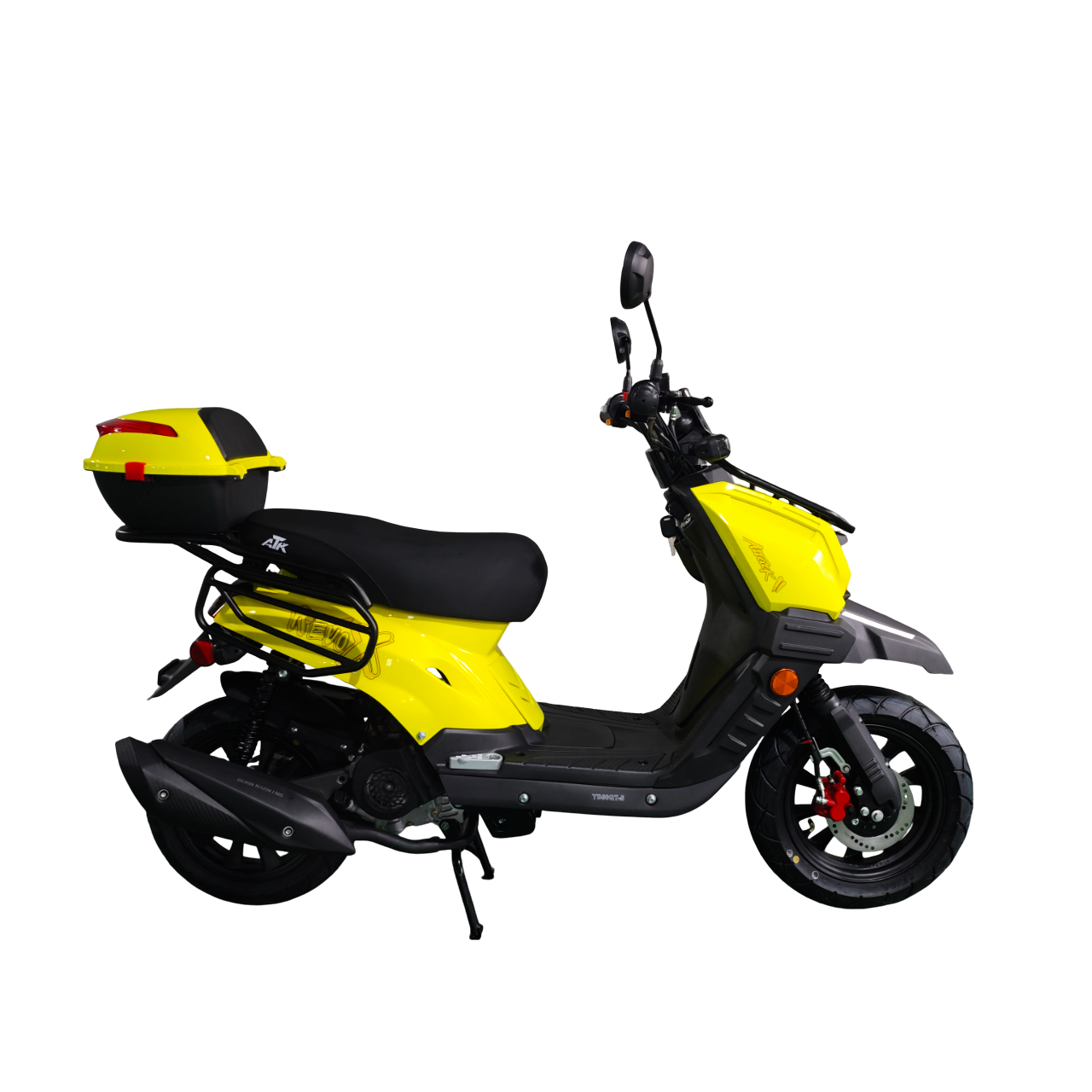

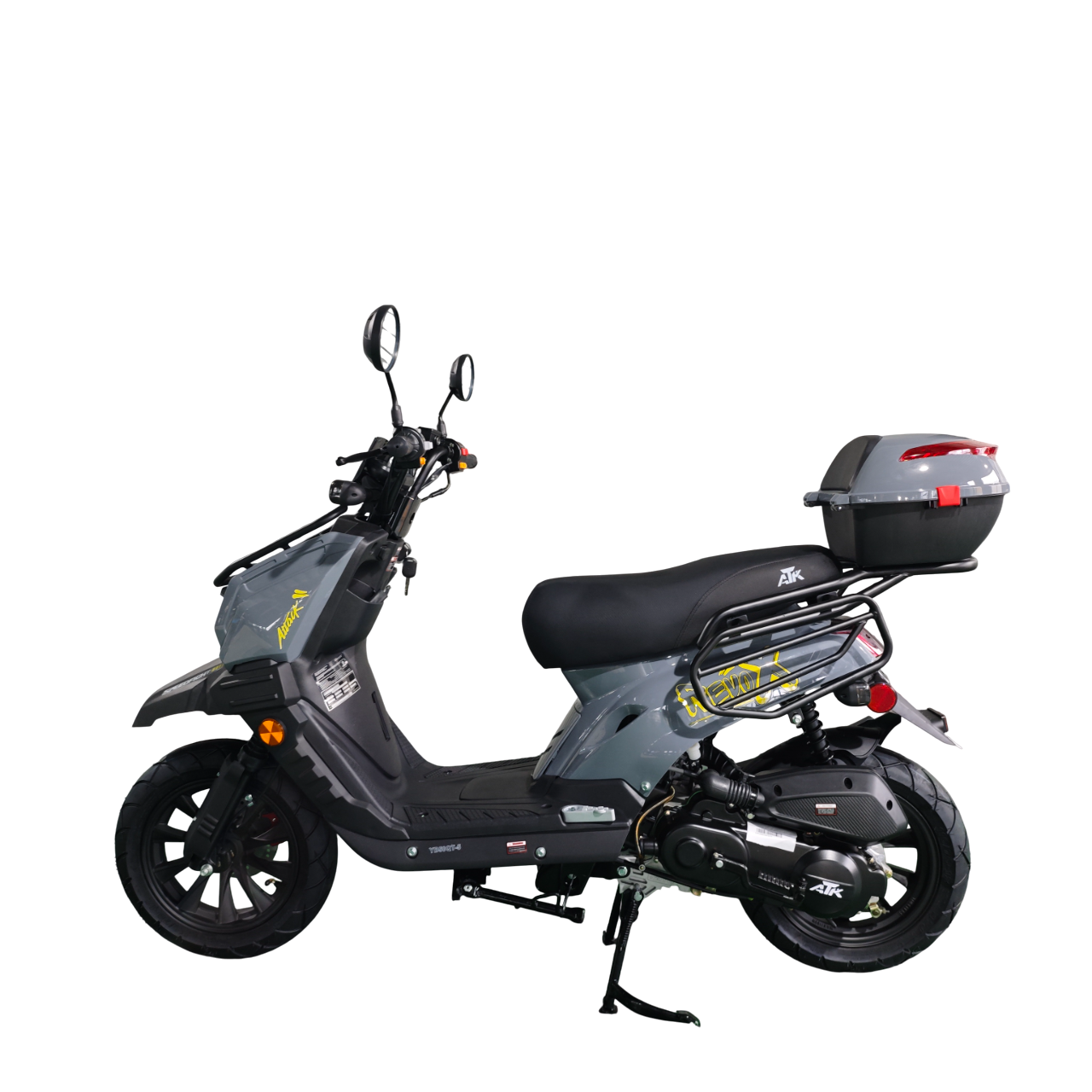

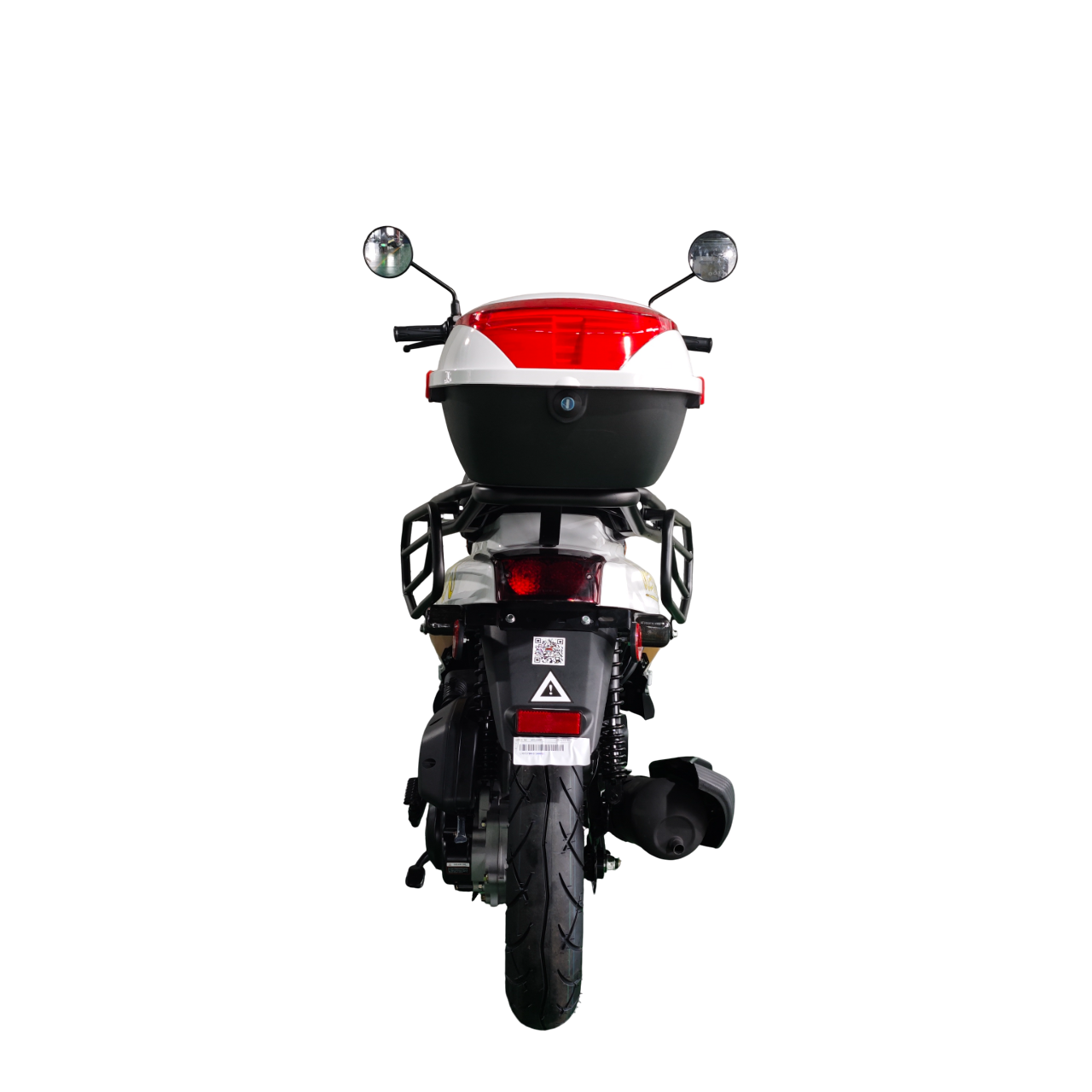

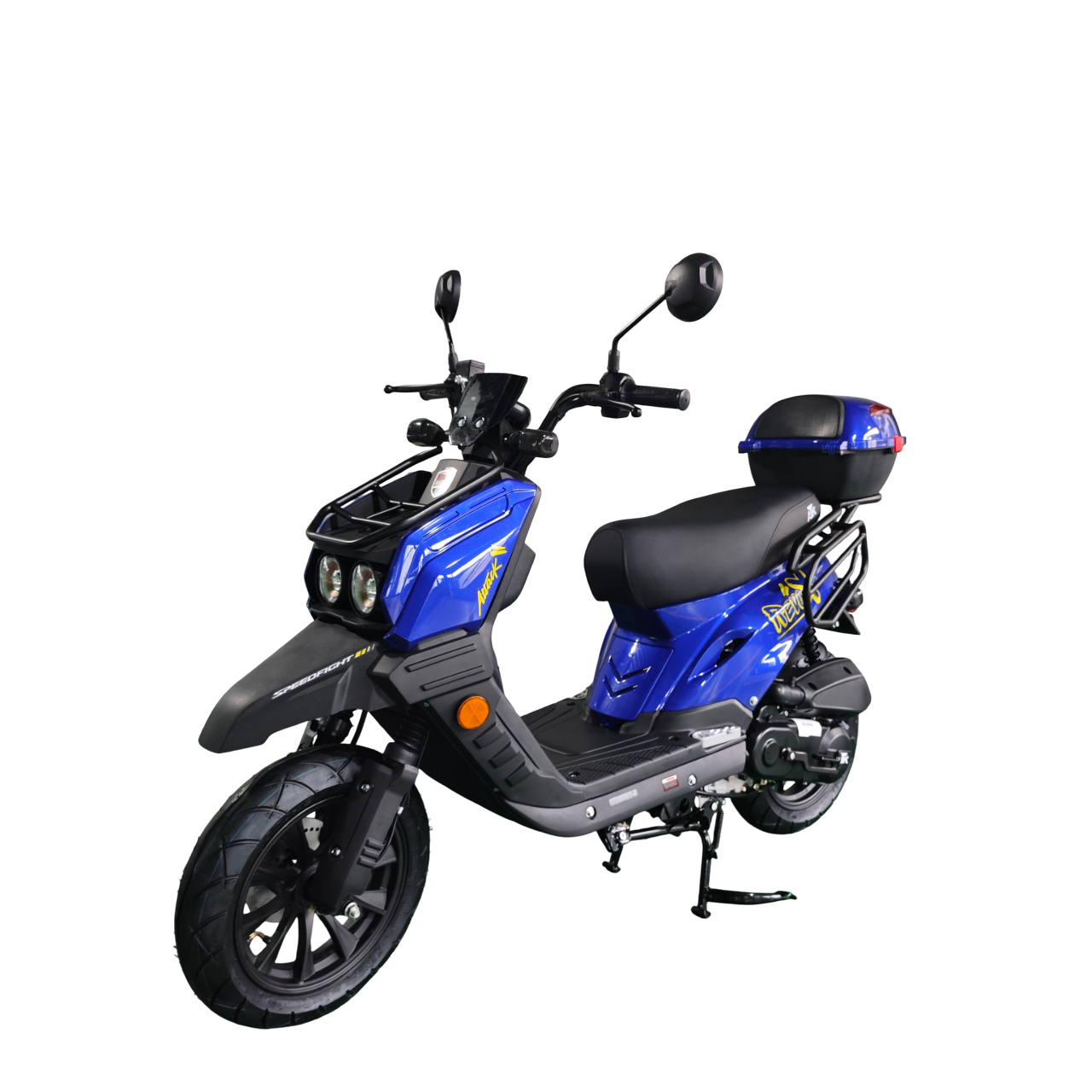

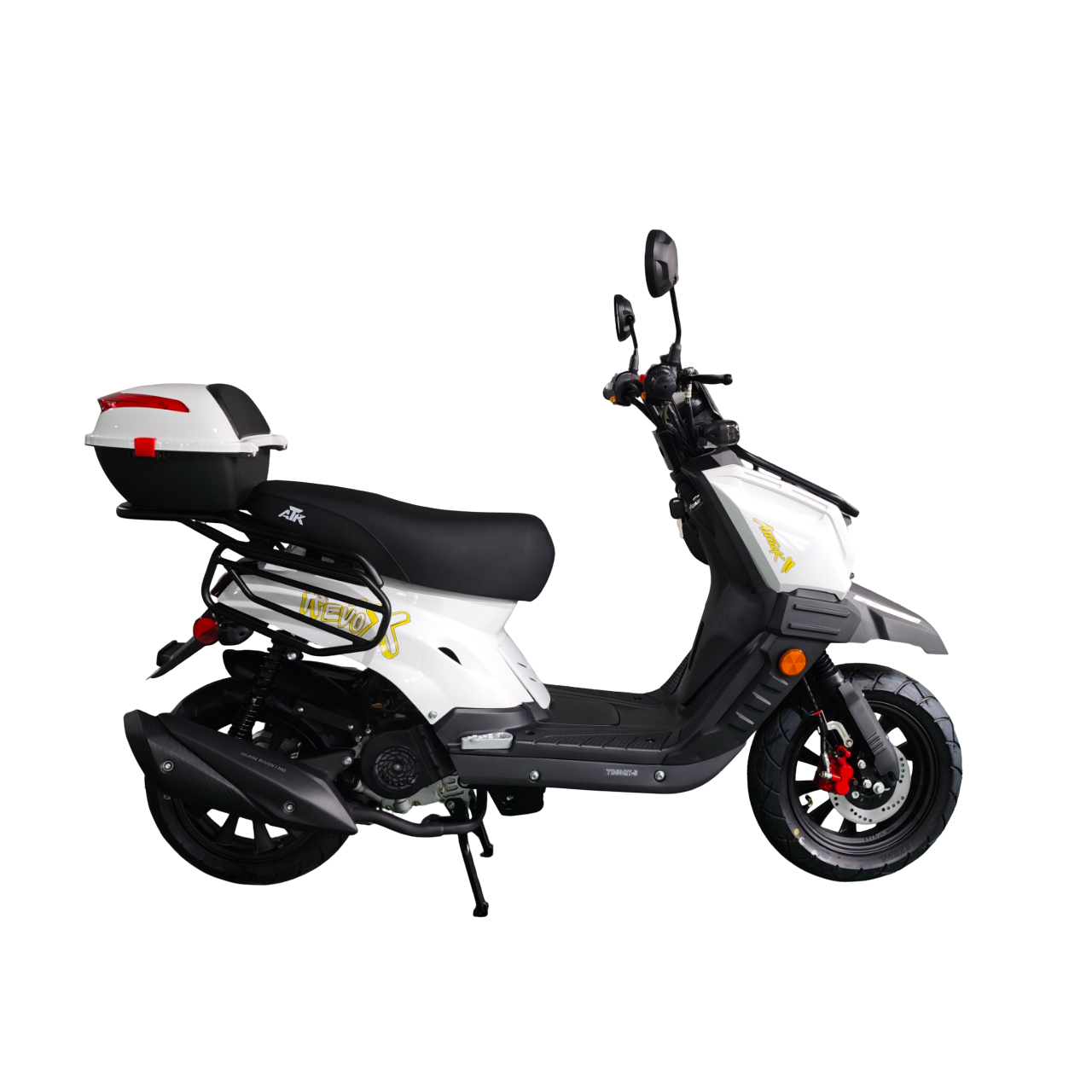

available colors

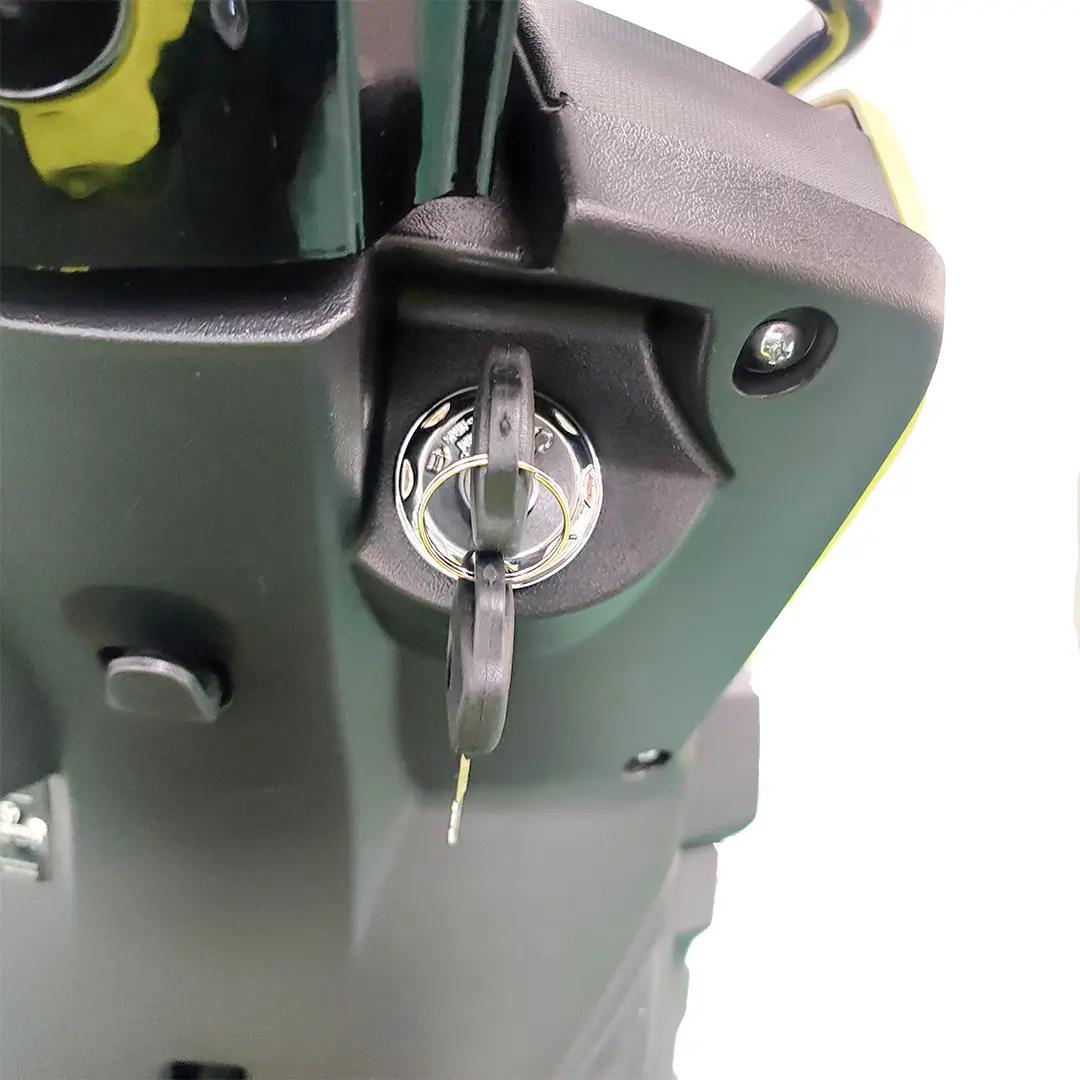

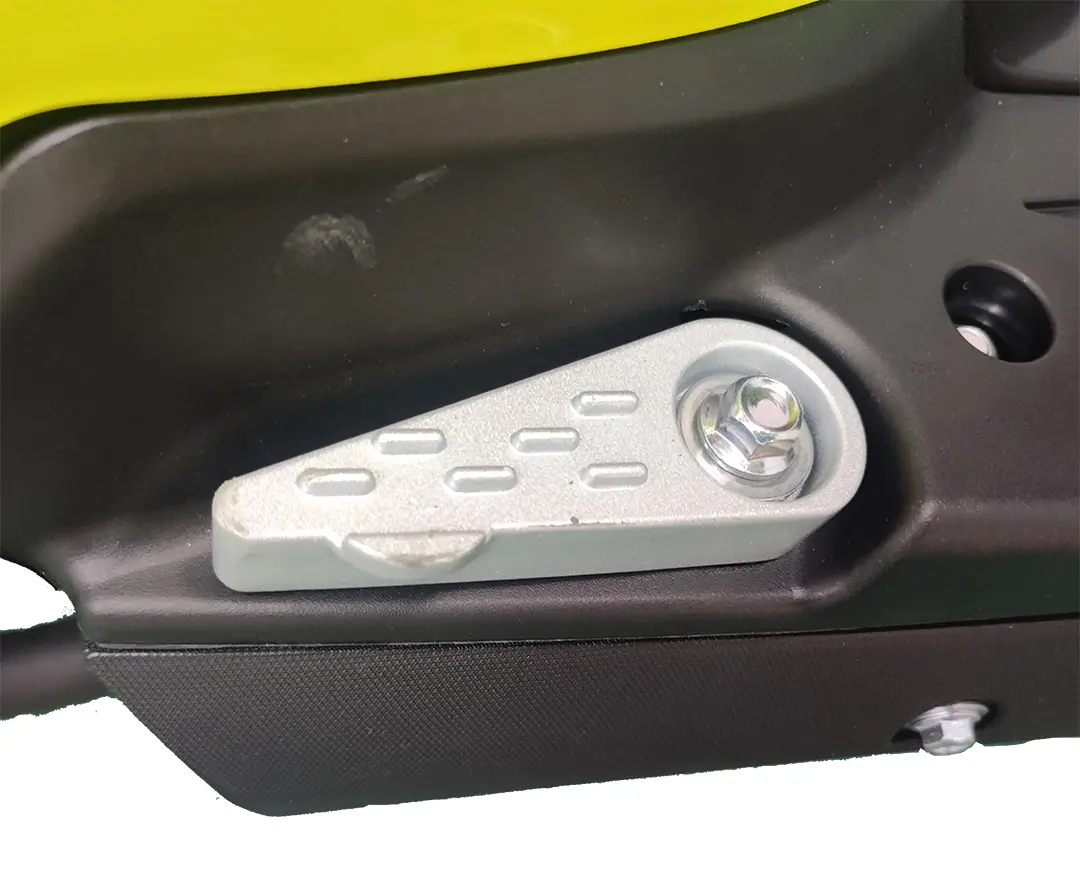

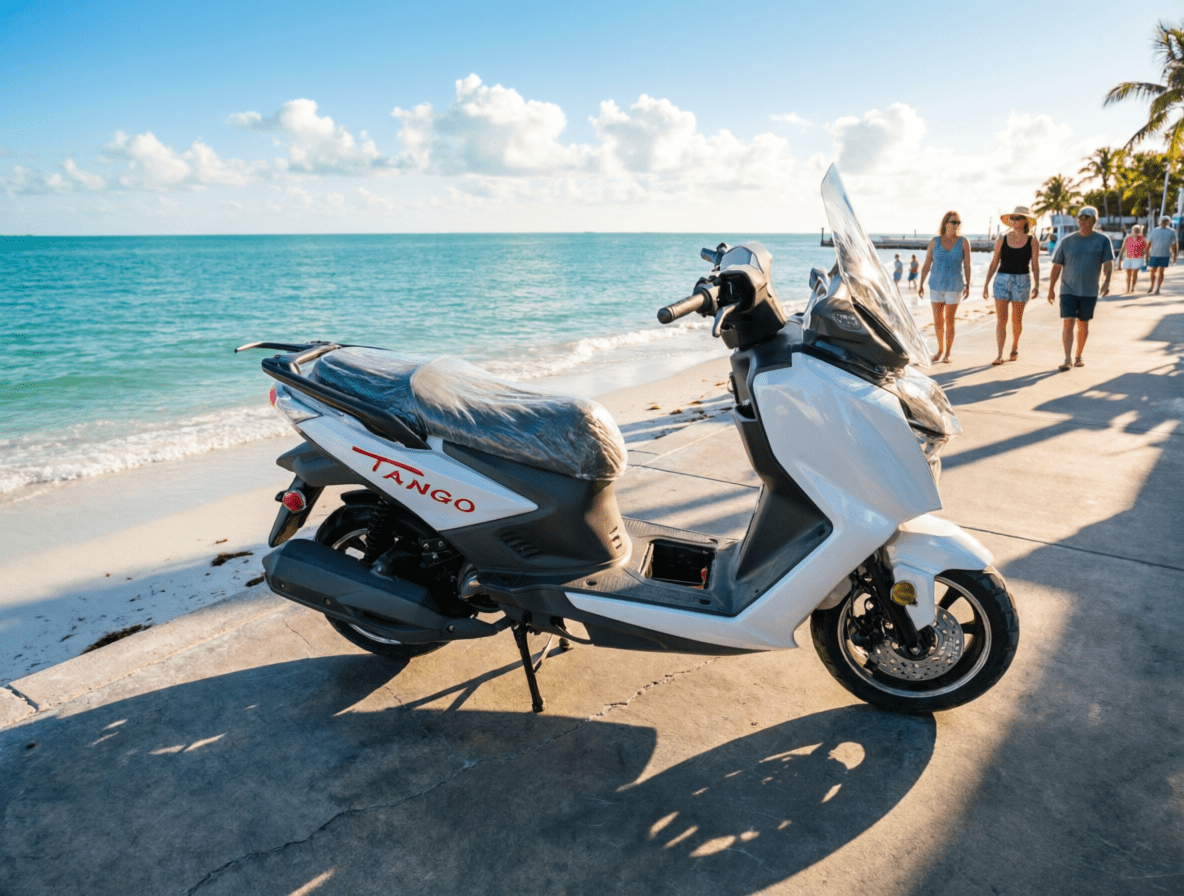

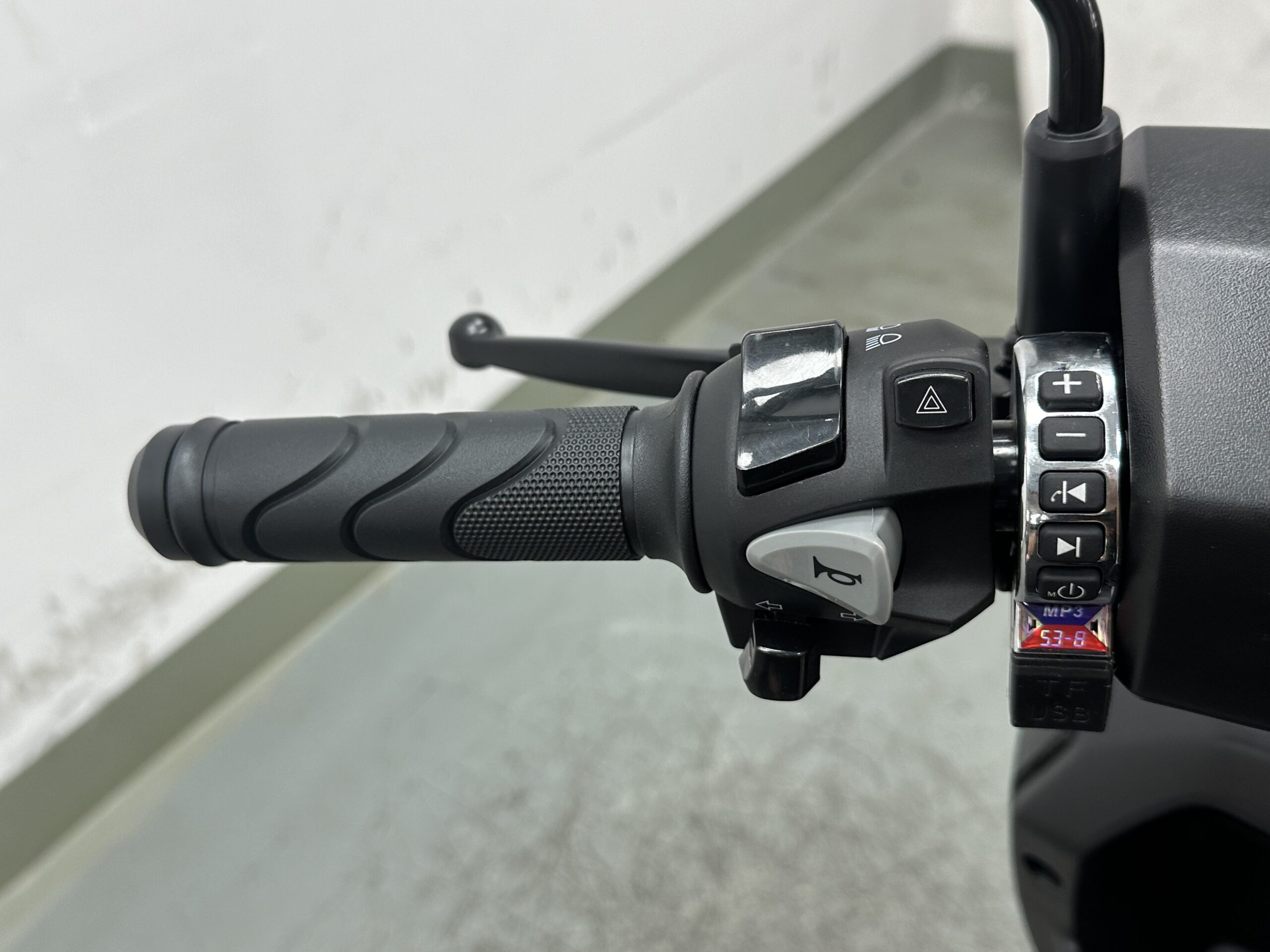

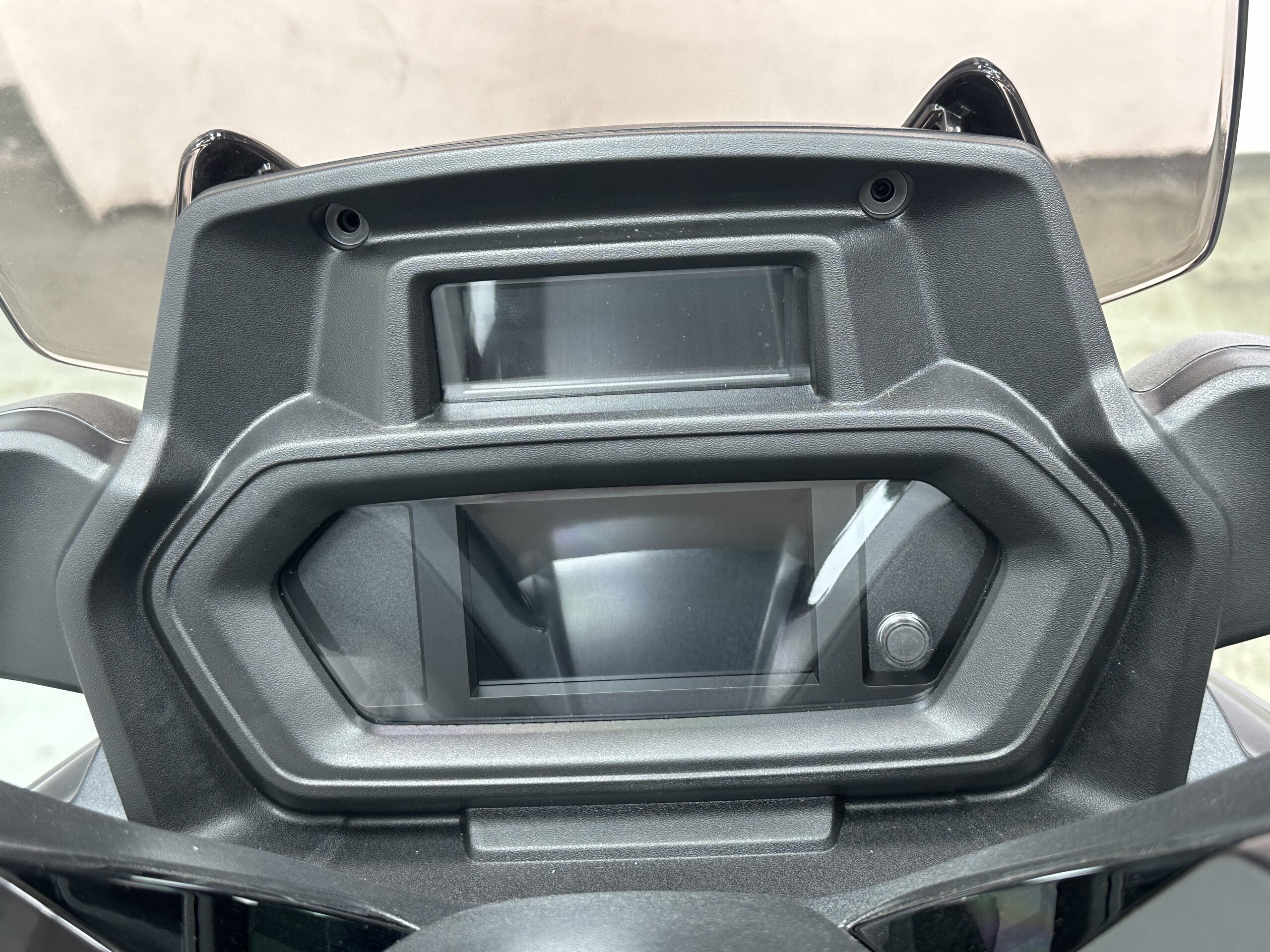

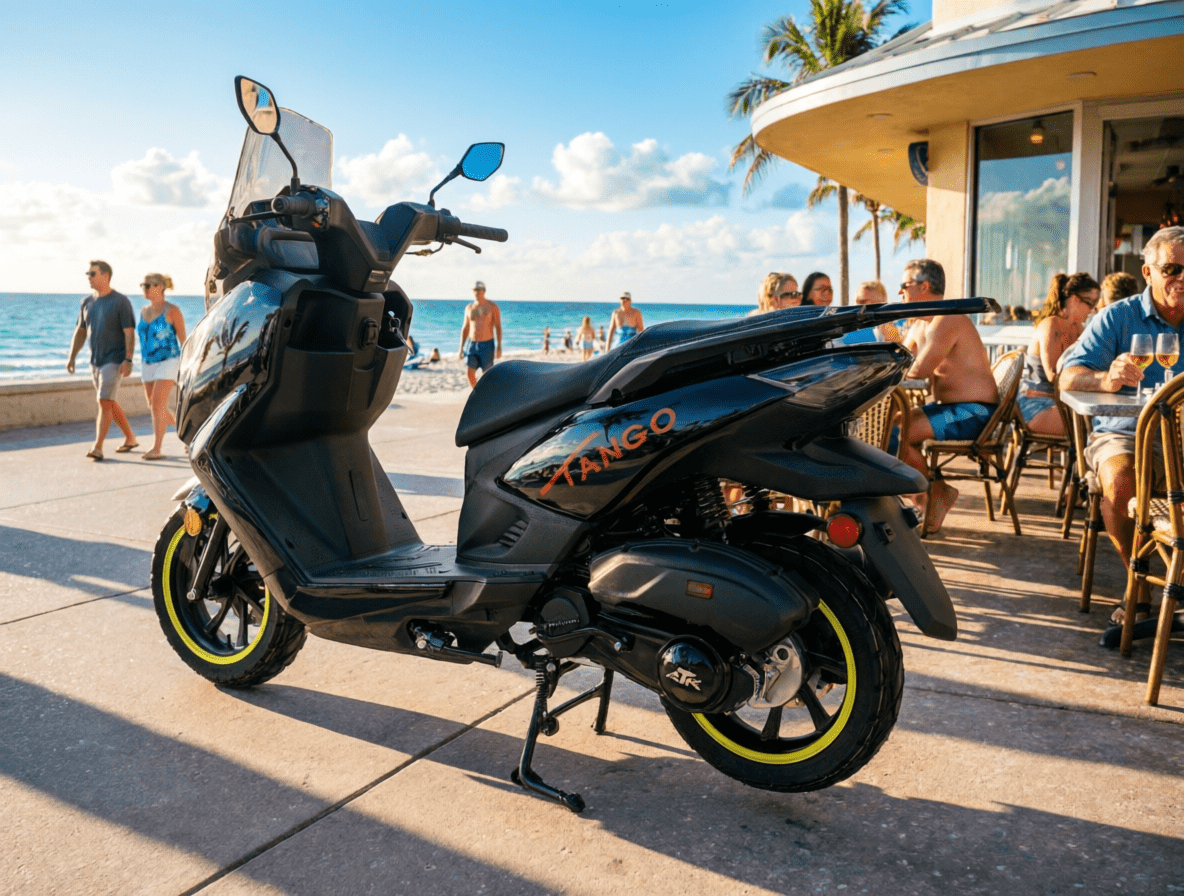

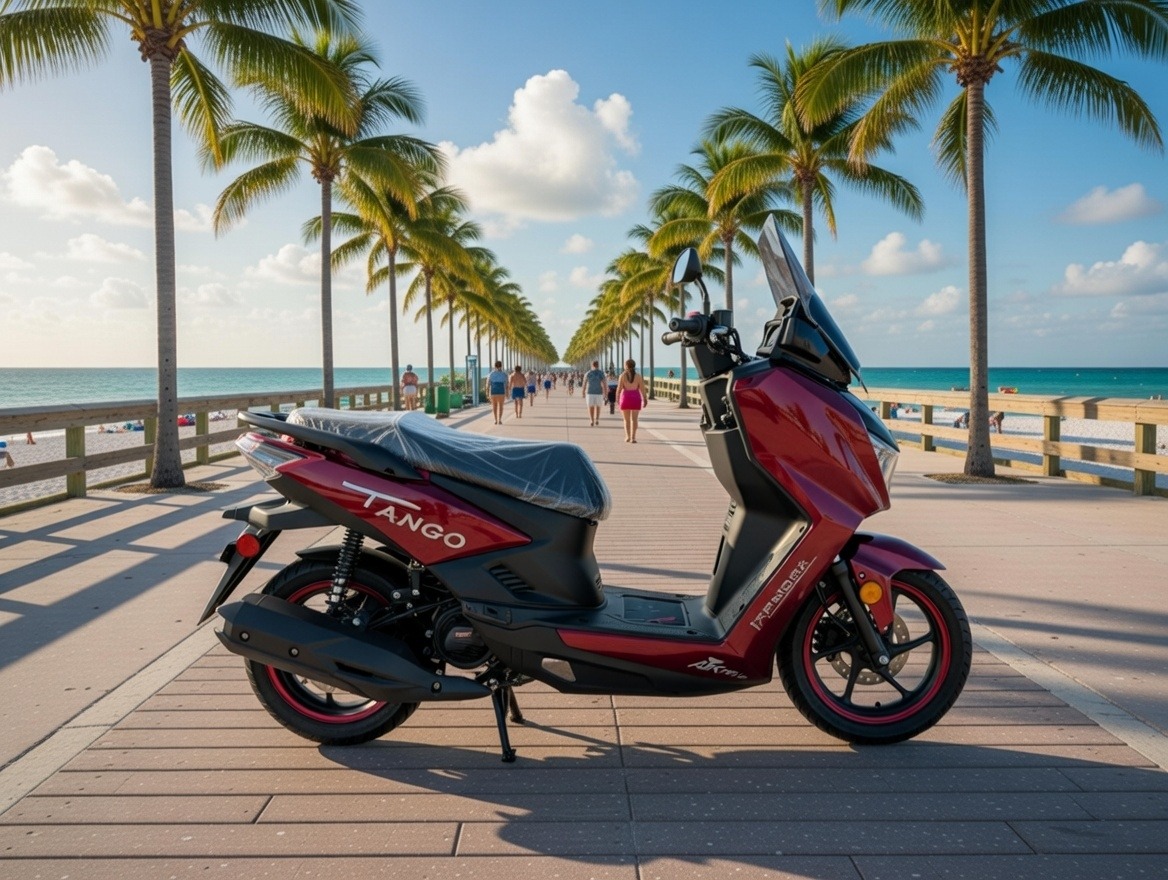

Gallery
